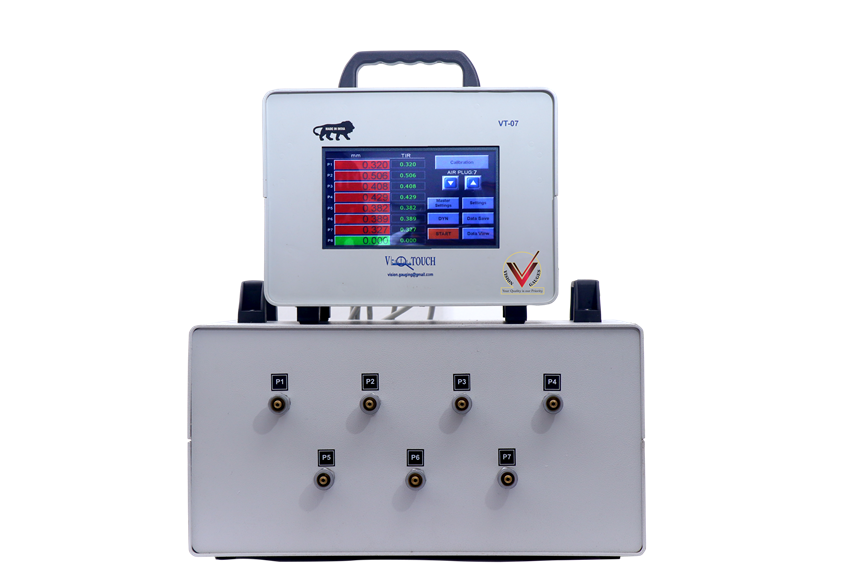

Applications Standard/Honing Dimension Type Linear Resolution 0.1μm/ 1μm Units mm Measurement Modes Current, Min, Max, TIR, AVG Additional results Max, Min, Ovality, and Taper for respective result can be display in run mode as additional results. Result Formula Editor Result formula can be edited for combinations of Piezo channels and / or other results. Indications Pass, Fail, Warning with facility to select require display reading in require colour according to the tolerance band Grade Max 25 Grades available Other Features Machine Stop Massage and Machine stop signal available for reject job condition Calibration Single/Double Master configurable / Force Mastering after N number of measured jobs / Group Calibration for selected result in one group / Auto Mastering is available. Accept Higher and Lower master on inserting into fixture/plug automatically in calibration process Auto Air Cut-Off Yes (Air will become ON after inserting job in Fixture/Plug) Air Saving facility / When nothing is inserted in Fixture/Plug Air will be OFF Measurement process Auto Cycle (After inserting job in Fixture/Plug it will show related Fixture/Plug result) / Measurement Cycle (Sequential measurement) Online SPC Cp, Cpk,
A pin gauge, also known as a pin gage, is a precision measuring tool used to measure the diameter or width of holes, slots, or other features on a workpiece. It typically consists of a set of cylindrical pins of varying diameters that are used to determine the size of a hole or opening.
Here are some key facts about pin gauges:
Types of Pin Gauges:
1. Standard Pin Gauge: Measures hole diameters in increments (e.g., 0.001 inches).
2. Tapered Pin Gauge: Measures tapered holes or slots.
3. Ball-Pin Gauge: Uses a ball-shaped tip to measure curved or irregular surfaces.
How to Use a Pin Gauge:
1. Select the appropriate pin gauge size.
2. Insert the pin into the hole or slot until it stops.
3. Check the size marked on the pin to determine the measurement.
Advantages:
1. High accuracy and precision.
2. Easy to use.
3. Inexpensive compared to other measuring tools.
Common Applications:
1. Machining and manufacturing.
2. Quality control and inspection.
3. Aerospace and automotive industries.
PIN GAUGE
