FLATNESS CHECKING AND DEPTH CHECKING MASTER

A pin gauge, also known as a pin gage, is a precision measuring tool used to measure the diameter or width of holes, slots, or other features on a workpiece. It typically consists of a set of cylindrical pins of varying diameters that are used to determine the size of a hole or opening. Here are some key facts about pin gauges: Types of Pin Gauges: 1. Standard Pin Gauge: Measures hole diameters in increments (e.g., 0.001 inches). 2. Tapered Pin Gauge: Measures tapered holes or slots. 3. Ball-Pin Gauge: Uses a ball-shaped tip to measure curved or irregular surfaces. How to Use a Pin Gauge: 1. Select the appropriate pin gauge size. 2. Insert the pin into the hole or slot until it stops. 3. Check the size marked on the pin to determine the measurement. Advantages: 1. High accuracy and precision. 2. Easy to use. 3. Inexpensive compared to other measuring tools. Common Applications: 1. Machining and manufacturing. 2. Quality control and inspection. 3. Aerospace and automotive industries.

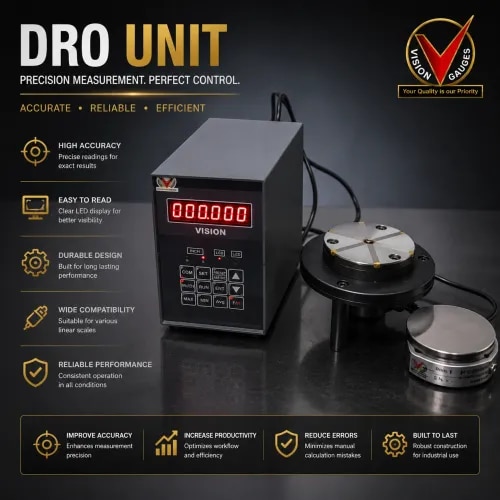

A DRO (Digital Readout) gauge unit! A DRO gauge unit is a digital measuring device used to display the position or dimension of a workpiece on a machine tool, such as a lathe, milling machine, or grinder. It provides precise measurements, improving accuracy and efficiency in various manufacturing and engineering applications. Key Components: 1. Display Unit: Shows measurements in numeric format. 2. Scales or Encoders: Measure linear or rotary motion. 3. Probes or Sensors: Detect position or dimensions. Types of DRO Gauge Units: 1. Linear DRO: Measures linear movement (e.g., X, Y, Z axes). 2. Rotary DRO: Measures angular movement (e.g., rotational position). 3. Combination DRO: Offers both linear and rotary measurements. Features and Benefits: 1. High accuracy (typically ±0.001-0.01mm). 2. Easy readability with large LCD displays. 3. Fast measurement updates. 4. Multiple units (e.g., inches, mm). 5. Data output options (e.g., USB, RS232). 6. Tolerance alarms for precision control. Applications: 1. Machining and manufacturing. 2. Quality control and inspection. 3. Aerospace and automotive industries. 4. CNC machine tools. 5. Precision engineering. Single channel gauge units with selectable probe Inch and Metric measuring ranges RED, GREEN and YELLOW tolerance lamps for REJECT, ACCEPT and REWORK indications RS232 data output Comprehensive outputs for further processing Compatible with Half-bridge and LVDT type inductive measuring probes Sturdy, Ergonomic design, suitable for shop floor environment Splash proof and sealed against dust Add-on Modules available for various applications e.g. Light Grading Module, Relay Module, etc. Mains supply 230 volts AC

1.1 AIR and LVDT PROBE ELECTRONICS COLUMN GAUGE (AIR TRANDUCERS ) / ( AIR PIEZO ) — Single Channel tri color bar graph and Six Digit Display — Inch and metric Ranges — Compatible with Half bridge and full bridge LVDT probe — Absolute / Comparative measurement — Static / Dynamic measurement — Pneumatic converter with 1 input when supplied with this module — Pneumatic converter without flow control valves — RS-232 serial port for PC connectivity — External relay output data saved — Optional — 5000 readings storage facility Range ±0.005 ±0.025 ±0.050 ±0.100 Bar graph L.C. 0.0002 0.0005 0.001 0.002 Six Digit L.C. 0.0002 0.0005 0.001 0.002

Seven segment, 6 character, 3 colour LED display, ½ inch tall Air-Electronic input from All Air Plug and Ring Gauges (APG & ARG) universal type Two metric measuring ranges: (resolution 0.5µm), (resolution 1µm) Measurement display in absolute or comparative form Auto calibration with two setting masters Keyboard entered upper & lower tolerance limits (UTL & LTL), applicable to the values displayed Static or dynamic (max, min, average & TIR) measurements Non-volatile storage of all menu entered values Available in 1 / 2 / 3 or 4 independent channels Combined advantages of non-contact air sensing and high precision electronics RS232 data output available for further processing like machine control through relay output or for SPC AIR SAVING TIMER AND PROXY SENSOR BASE USB DATA SAVE

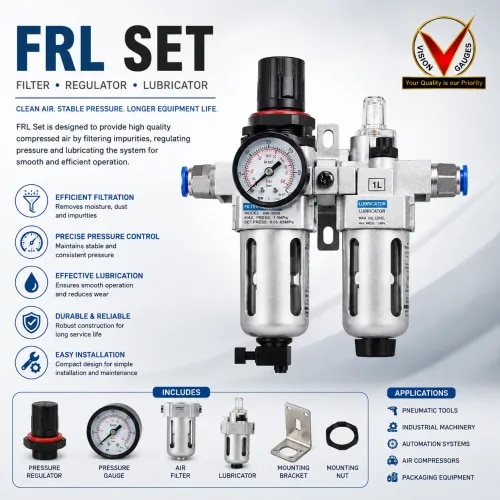

RL stands for Filter, Regulator, and Lubricator, and it is a common assembly used in pneumatic systems to ensure clean, stable, and properly lubricated air supply. When combined with an FRC (Air Filter Regulator Combination), it provides a streamlined solution for air treatment in pneumatic systems

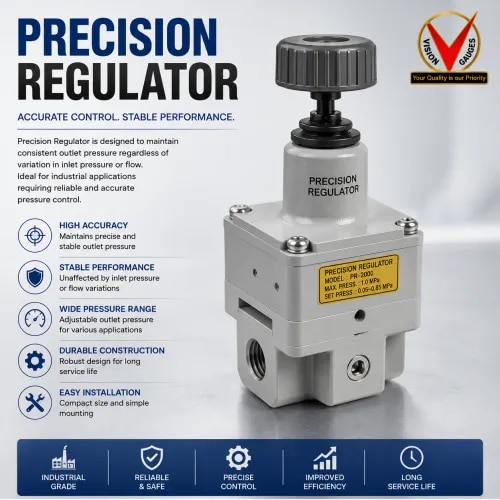

precision regulator is a device designed to control and maintain a specific, stable pressure within a system, often with high accuracy and minimal fluctuation. These regulators are crucial in applications where precise pressure control is essential, such as in laboratory settings, industrial processes, or high-precision machinery. Here’s an overview of precision regulators, including their types

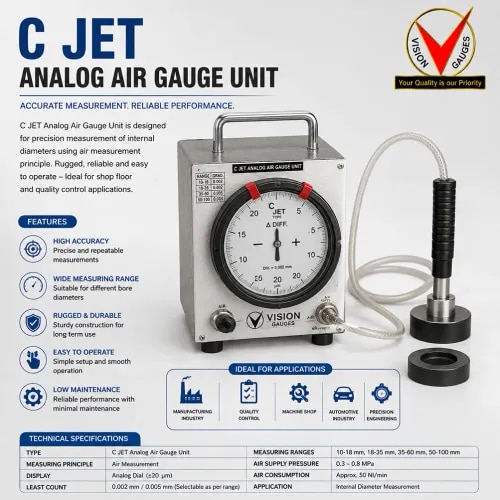

7 segment tri colour LED display Air Gauge Can directly connected RS-232 serial port for PC connectivity Accuracy ±1% FSD 0.1μm, 0.5μm, 1μm, Least Count Absolute or comparative measurement Tolerance limit setting 2 LED’s showing status Accept-Reject-Rework Built in air regulator for precise pressure Auto ID – OD recognition Compatible with wide range of Air gauges from leading manufacturers Air saving facility as a standard feature for saving costly air Optional — 50000 readings storage facility LOW MAINTANACE

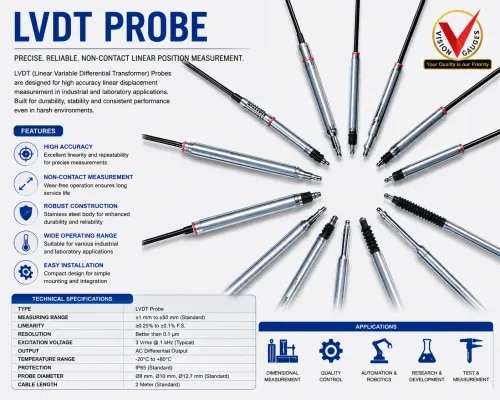

LVDT (Linear Variable Differential Transformer) probes are precision sensors used to measure linear displacement or position. They are known for their accuracy, reliability, and durability in various industrial and research applications. Here's an overview of how they work, their components, and their applications:

VISION offers custom design & built solutions for measurement of high volume parts in production. Combining various sensor options like LVDT, PIEZZO sensors & camera; our solutions provide precision with through put.

Computerized SPC Multi bore Checking System Air-Electronic input from VISION Air Plug Two metric measuring ranges: 200µm (resolution 0.1µm), 2000µm (resolution 1µm), and two Inch measuring ranges: 20.0 thou (resolution 0.01 thou) & 200 thou (resolution 0.1 thou) Measurement display in absolute or comparative form Auto calibration with two setting masters Keyboard entered upper & lower tolerance limits (UTL & LTL), applicable to the values displayed Static or dynamic (max, min, average & TIR) measurements Combined advantages of non-contact air sensing and high precision electronics SPC all chart available air saving
