ANOLOG AIR GAUGE UNIT by Voision gauges

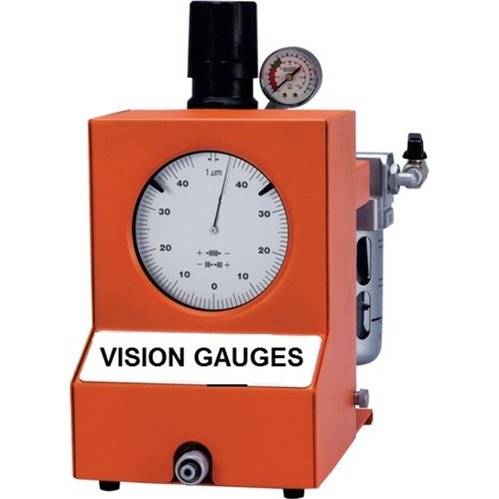

Analog Air Gauge unit

Contact Us

Phone Number

08048034256

Please keep 0 before dialling the number.

Email Address visiongauges@gmail.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website
Address First Floor , S.No 38/1, Khedekar Industral Estate, Shatabdi Building , B – Wing, Pune, Maharashtra 411041

Pune, India, 411041

Description

Every gauge carries a calibration certificate giving actual values Module 1A, Module 2A giving the most economical solution to your inspection needs on shop floor High pressure system: high speed of response and self cleaning of gauging area ensures accurate reading of size, taper and ovality at a time Non-contact gauging: long life due to minimal frictional wear Two setting Masters: ensures correct magnification of reading at all times System pressure check gauge: provides a constant check on the system pressure i.e. 3 bars (45 psi) regulated by a high precision regulator built into the unit Minimum line pressure required 4.5 bars (67 psi) Air consumption 46 LPM For diameter 6 mm and above Module-1A air gauge unit is to be used For diameter below 6 mm Module-2A air gauge unit is to be used
