DRO UNIT by Vision gauges

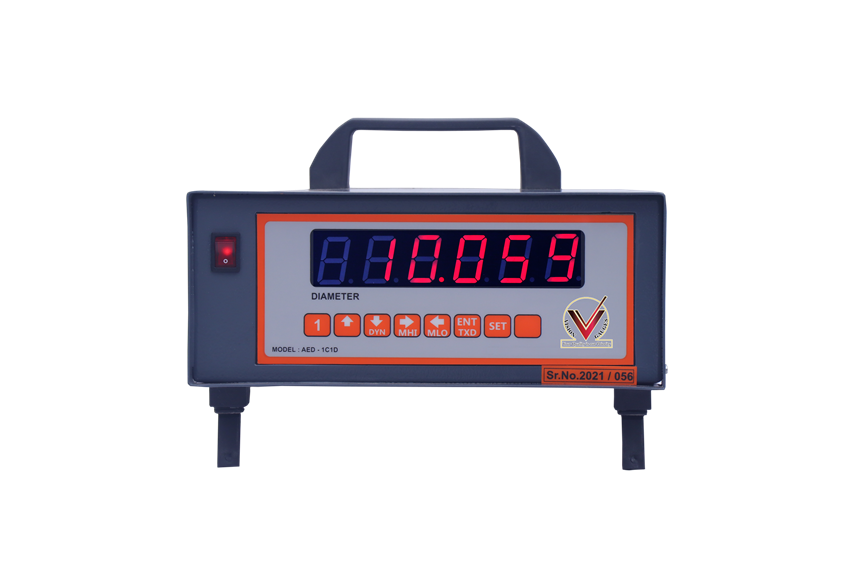

DRO Single Display Unit

Contact Us

Phone Number

08048034256

Please keep 0 before dialling the number.

Email Address visiongauges@gmail.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website
Address First Floor , S.No 38/1, Khedekar Industral Estate, Shatabdi Building , B – Wing, Pune, Maharashtra 411041

Pune, India, 411041

Description

State-of-the-art technology with host of features, a must for today’s shop process quality engineering Two level password, prevents unauthorized alteration Multiple-level display intensity for operators comfort Inch & metric measuring ranges Static & dynamic measurement Permits incorporation of complex formulae for probe combination Display of tolerance and control limit status – supports process control Classifies tolerance band into uniform or non-uniform tailor made grades Permits menu entries up to 16 different settings for quick application changeover Wide range of process control based electrical outputs facilitates automation Auto calibration Compatible with half bridge and LVDT type inductive measuring probe RS232 based interface with real time tagged measurements Aesthetically appealing, sturdy and ergonomic design, suitable for shop-floor applications USB interface to PC and flash drive

1.1 LVDT PROBE BASE
