Computerized SPC Multi bore Checking System Air-Electronic input from VISION Air Plug Two metric measuring ranges: 200µm (resolution 0.1µm), 2000µm (resolution 1µm), and two Inch measuring ranges: 20.0 thou (resolution 0.01 thou) & 200 thou (resolution 0.1 thou) Measurement display in absolute or comparative form Auto calibration with two setting masters Keyboard entered upper & lower tolerance limits (UTL & LTL), applicable to the values displayed Static or dynamic (max, min, average & TIR) measurements Combined advantages of non-contact air sensing and high precision electronics SPC all chart available air saving

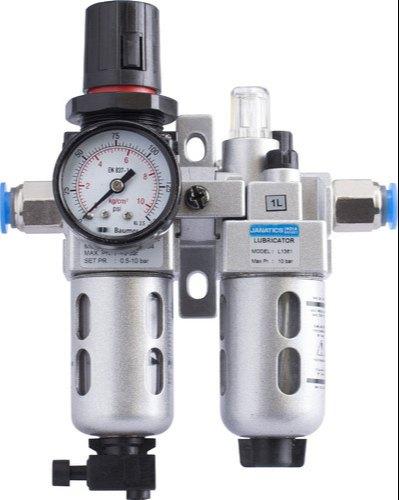

RL stands for Filter, Regulator, and Lubricator, and it is a common assembly used in pneumatic systems to ensure clean, stable, and properly lubricated air supply. When combined with an FRC (Air Filter Regulator Combination), it provides a streamlined solution for air treatment in pneumatic systems

precision regulator is a device designed to control and maintain a specific, stable pressure within a system, often with high accuracy and minimal fluctuation. These regulators are crucial in applications where precise pressure control is essential, such as in laboratory settings, industrial processes, or high-precision machinery. Here’s an overview of precision regulators, including their types

VISION offers custom design & built solutions for measurement of high volume parts in production. Combining various sensor options like LVDT, PIEZZO sensors & camera; our solutions provide precision with through put.

Applications Standard/Honing Dimension Type Linear Resolution 0.1μm/ 1μm Units mm Measurement Modes Current, Min, Max, TIR, AVG Additional results Max, Min, Ovality, and Taper for respective result can be display in run mode as additional results. Result Formula Editor Result formula can be edited for combinations of Piezo channels and / or other results. Indications Pass, Fail, Warning with facility to select require display reading in require colour according to the tolerance band Grade Max 25 Grades available Other Features Machine Stop Massage and Machine stop signal available for reject job condition Calibration Single/Double Master configurable / Force Mastering after N number of measured jobs / Group Calibration for selected result in one group / Auto Mastering is available. Accept Higher and Lower master on inserting into fixture/plug automatically in calibration process Auto Air Cut-Off Yes (Air will become ON after inserting job in Fixture/Plug) Air Saving facility / When nothing is inserted in Fixture/Plug Air will be OFF Measurement process Auto Cycle (After inserting job in Fixture/Plug it will show related Fixture/Plug result) / Measurement Cycle (Sequential measurement) Online SPC Cp, Cpk,

Every gauge carries a calibration certificate giving actual values Module 1A, Module 2A giving the most economical solution to your inspection needs on shop floor High pressure system: high speed of response and self cleaning of gauging area ensures accurate reading of size, taper and ovality at a time Non-contact gauging: long life due to minimal frictional wear Two setting Masters: ensures correct magnification of reading at all times System pressure check gauge: provides a constant check on the system pressure i.e. 3 bars (45 psi) regulated by a high precision regulator built into the unit Minimum line pressure required 4.5 bars (67 psi) Air consumption 46 LPM For diameter 6 mm and above Module-1A air gauge unit is to be used For diameter below 6 mm Module-2A air gauge unit is to be used

Supplied with a fixed adaptor which fits all types of connectors. Foldable feet for better Readability. High pressure system: high speed of response and self cleaning of gauging area ensures accurate reading of size, taper and ovality at a time. Non-contact Gauging: long life due to minimal frictional wear. RANGE +/-0.020 mm, +/-0.040 mm, +/-0.002″
